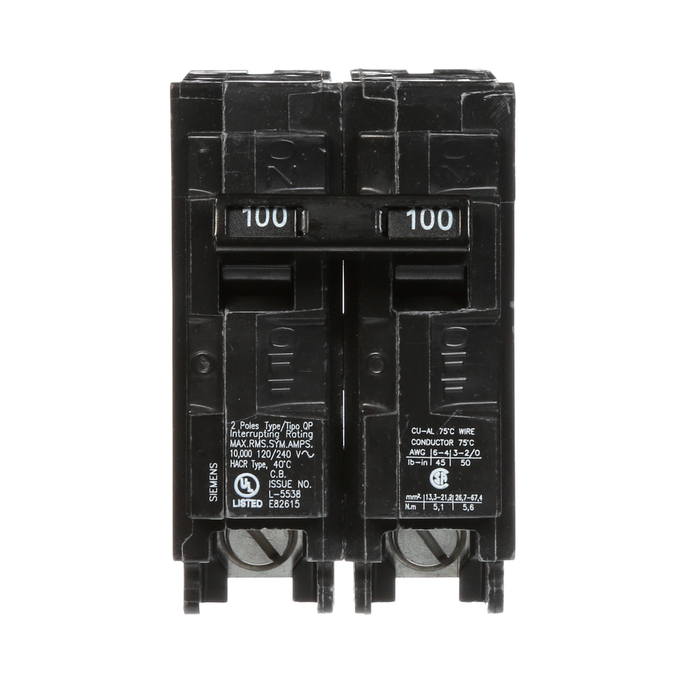

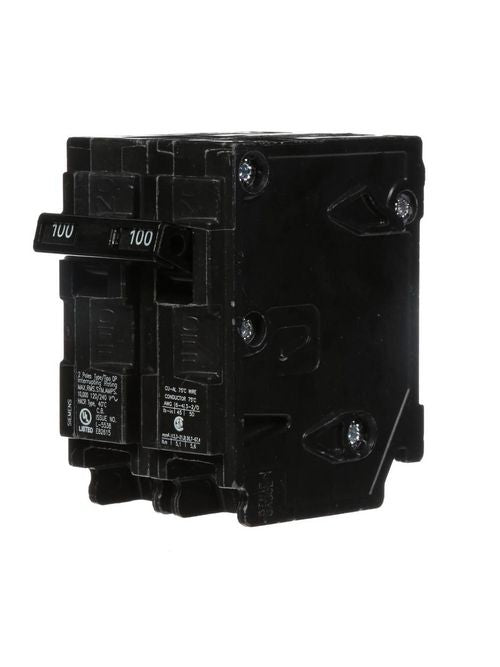

Siemens Q2100 2-Pole 100A Circuit Breaker HH

Siemens Q2100 2-Pole 120/240 VAC 100 Amp 10 kA Plug-In Common Trip Circuit Breaker

Features

• 2-pole, 100 Amp, 240-Volt Type QP circuit breaker
• 10,000 AIC interrupting rating
• Siemens type QP circuit breakers provide easy plug-in connections in Siemens enclosures and the time saving insta-wire feature
• Compatible with Siemens PL and ES series load centers
• Use for overload and short-circuit protection of your electrical system
• Thermal-magnetic

Specifications

• Standard: UL LISTED / CSA / NOM CERTIFIED
• Continuous current rated value: 100 A
• Voltage between phase and Ground (GND) rated value: 120 V
• Voltage between phase and phase rated value: 240 V
• Supply voltage frequency rated value 50/60 Hz: TRUE
• Suitability for operation: ELECTRICAL DISTRIBUTION
• Number of poles: 2
• Design of the product: QP
• Size of the circuit-breaker: QP (125A)
• Design of the overload release: THERMAL - MAGNETIC
• Height [in]: 3.12 in
• Width [in]: 2 in
• Depth [in]: 3 in
• Product feature: 10kA INTERRUPT
• Type of electrical connection: PLUG-IN
• Product brand name: SIEMENS
• Type of connectable conductor cross-sections at AWG conductors: 4 - 1/0AWG (CU) / 2 - 1/0AWG (AL)
• Type of mounting panel: LOADCENTER
